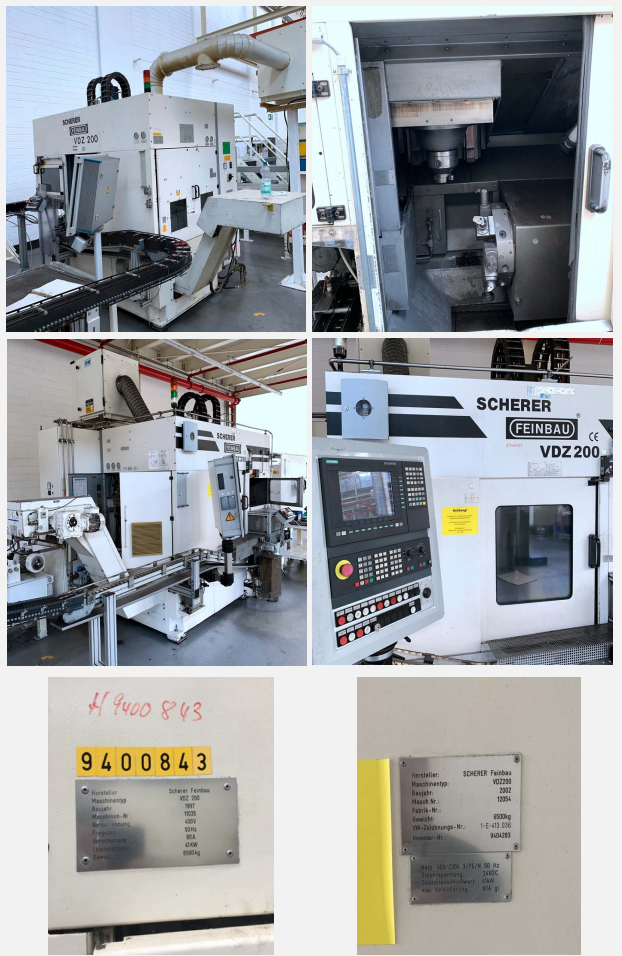

| 制造厂商 / Manufacturer:
|
舍厄尔（SCHERER）
|
| 机床型号 / Machine model:
|
VDZ 200
|
| 出厂日期 / Year of produce:
|
1997, 2002
|
| 机床编号 / Serial No.:
|
11035, 12054
|
| 数控系统 / CNC control system:
|
Siemens 840C, Siemens 840D
|
|
最大车削直径 / Max. turning diameter:
|
200 mm
|
| 最大车削长度 / Max. turning length:
|
100 mm
|
| X轴行程 / X axis travel:
|
820 mm
|
| Z轴行程 / Z axis travel:
|
240 mm
|
| X轴进给速度 / X feed rate:
|
60 m/min
|
| Z轴进给速度 / Z feed rate:
|
30 m/min
|
|
主轴前端直径 / Spindle frontend bearing:
|
100 mm
|
| 主轴锥度 / Spindle taper:
|
A5 (DIN 55026)
|
| 主轴转速 / Spindle speed:
|
7200 rpm
|
| 主轴功率 / Spindle power:
|
23.6/29 kW
|
| 最大扭矩 / Max. torque:
|
146 Nm
|
|
刀库容量 /
Capacity of tool magazine:
|
8
|
| 总连接负载 / Total connecting power:
|
N/A
|
|
机床毛重 / Machine gross weight:
|
6000 kg
|
| 机床外形尺寸 / Machine dimensions:
|
2400 x 1700 x 2700 mm
|
|
装置和附件 / Equipments &
Accessories:
|
西门子840C & D /
Siemens 840C & D
|
|
送料托板（从进出口红线处截断） / Job loader
(cut from joints mark in RED)
|
|
电磁排屑器 / Chip conveyor
|
|
线缆、管路、支架和护罩 / Cables, pipes,
stands and covers
|
|
技术资料 / Technical documents
|
